Bay & Bow Windows

Bay & Bow Windows in Oakland Park, FL | TruePane Windows & Doors

Bay and bow windows are the architectural centerpiece many Oakland Park homeowners want: a projecting glass alcove that adds usable interior square footage and pulls in light from three or more angles. TruePane Windows & Doors fabricates and installs these multi-panel configurations in laminated impact glass engineered for Florida wind zones, including Broward County’s High-Velocity Hurricane Zone requirements. We build each bay or bow to the exact opening, so the projection depth, panel count, and glass package match your home and your street. If you’re planning a living-room upgrade, a kitchen breakfast nook, or a primary-bedroom seating alcove, call (863) 264-3649 and we’ll walk you through what’s possible for your Oakland Park home.

Call (863) 264-3649

Product Overview - Bay & Bow Windows

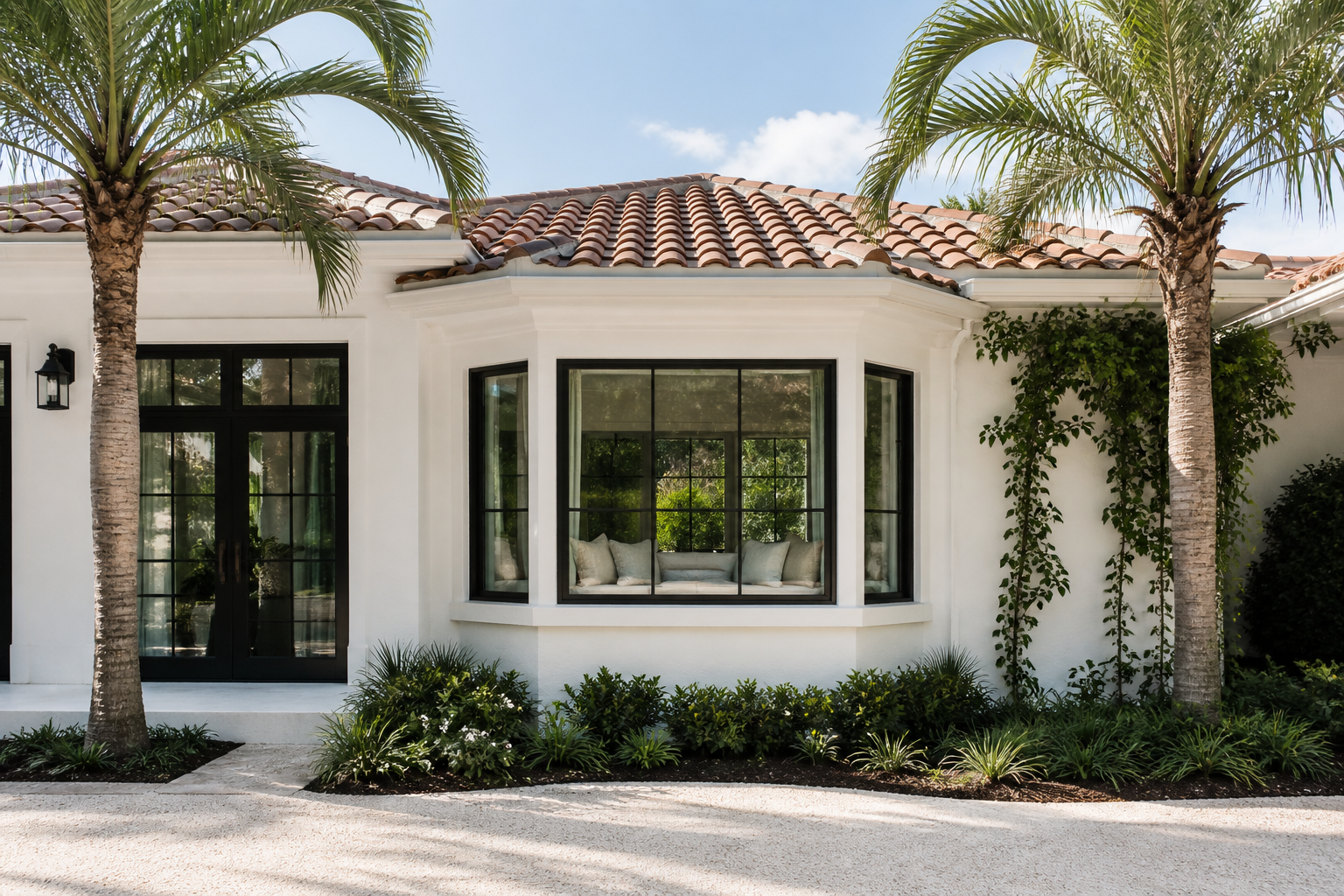

A bay window is typically a three-panel projection: a wide fixed center unit flanked by two operable or fixed side panels set at angles, usually 30 or 45 degrees. A bow window uses four, five, or even six narrower panels arranged in a gentle arc. Both styles push outward from the exterior wall line, creating a shelf or seating area inside and a more dimensional facade outside. In Oakland Park, where many homes date to the 1950s, 60s, and 70s ranch and Mid-Century builds, a bay or bow window is one of the fastest ways to modernize a front elevation or expand a rear living space without adding a room addition.

What makes our Bay & Bow Windows suited to South Florida construction starts with the glass. We use laminated impact glass with a PVB interlayer, which holds the glass in the frame under impact, per the Miami-Dade testing standards described below. The frames are aluminum or vinyl, both appropriate for the humidity and salt air we see across Oakland Park’s residential corridors. We project the units outward with a reinforced seat board and head structure, so the cantilevered load is carried properly, not hung off the wall sheathing. The result: added interior square footage and panoramic sightlines engineered to your wind zone, matched to the design pressure your specific opening requires, up to +/-100, never higher.

Technical Specifications

Every bay or bow we order is custom fabricated to the opening. There’s no stock size we force your rough opening into. The specs below are what we work with when we quote your Oakland Park project.

• Frame materials: Aluminum or vinyl, selected for exposure, finish preference, and structural requirements
• Maximum size: Custom fabricated to the opening; projection depth and panel width determined by engineering
• Glass options: Laminated Impact Glass (PVB Interlayer), Low-E Insulated Glass, Tinted Glass, Clear Glass
• Finish options: White, Almond, Bronze, Black, Tan
• Sill options: Standard Sill or Seat/Shelf Sill for a deeper interior ledge
• Design pressure: Matched to your wind zone, up to +/-100, never higher
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration; engineered to FBC High-Velocity Hurricane Zone requirements

When we prepare your quote, we’ll specify which NOA or Florida Product Approval number applies to your exact configuration. That’s the document your Oakland Park permit reviewer will look for.

Hurricane & Compliance Performance

Laminated Impact Glass (PVB Interlayer)
The impact layer is a polyvinyl butyral interlayer bonded between two panes of glass. Under a large-missile strike, the glass may crack, but the PVB holds the fragments in place and keeps the building envelope sealed. That’s the core of what makes this product a hurricane window rather than a standard residential unit.

Miami-Dade NOA / Florida Product Approval
Our bay and bow configurations carry Miami-Dade Notice of Acceptance and Florida Product Approval numbers, issued per configuration. The specific number depends on the combination of panel sizes, frame material, and glass package. We verify the exact approval on your quote before it goes to the Oakland Park building department.

FBC / HVHZ Compliance
These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements. That’s the standard Oakland Park enforces because of our coastal proximity. A window that’s not designed and tested for HVHZ loading will not pass a Broward County permit review, period.

TAS 201 / 202 / 203 Testing Context
The Miami-Dade protocol family that governs HVHZ-rated fenestration includes TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. Our impact bay and bow configurations are tested within this framework. These tests simulate what happens when debris hits the glass, when wind gusts cycle against the frame, and when someone attempts forced entry after the storm.

Design Pressure for Your Wind Zone
Design pressure, or DP, is the measure of how much wind load a window can withstand. We match the DP of every bay and bow to the wind zone of your specific Oakland Park address. The rating goes up to +/-100, never higher. That number comes from the structural calculation for your opening, not a generic catalog rating.

Energy Performance (Low-E / Insulated Options)
For homeowners who want storm protection without giving up utility performance, we offer Low-E and insulated glass packages. Low-E coatings reduce solar heat gain through the glass, which matters when a bay faces west toward the afternoon sun. Insulated glass improves comfort in rooms that run hot or cold. These options work with the impact laminate, not instead of it.

Color & Glass Options

Frame finishes matter more on a bay or bow than on a flat window, because the projection makes the frame a visible architectural element from the street. White and almond are the most common choices in Oakland Park’s ranch and Mediterranean-style neighborhoods, where they read cleanly against stucco and light trim. Bronze and black frames anchor a window visually, which suits contemporary remodels and homes with darker entry features or modern landscaping. Tan blends well on terracotta or beige stucco elevations, which you’ll see throughout the older Oakland Park neighborhoods near Dixie Highway and along the Middle River.

The glass selection depends on what you want from the room. Clear impact glass is the most economical path to code compliance and the brightest daylight. Tinted glass cuts glare, useful for east-facing bays that catch morning sun. Low-E insulated glass is our standard recommendation for bays on unshaded south or west walls, where heat gain through the glass is highest. Laminated impact glass is the foundation of every configuration we sell; the other glass choices layer on top of it.

Installation by TruePane Windows & Doors in Oakland Park

A bay or bow window is a structural installation, not a window swap. The unit projects beyond the wall plane, which means the support system, flashing, and seals have to be engineered and executed correctly. An improperly installed bay will leak, sag, or lose its NOA-rated performance. We’ve seen it in Oakland Park homes where a previous contractor cut corners and the homeowner didn’t find out until the first heavy rain season.

Our installation process starts with a pre-install inspection of the rough opening, studs, sill, and header. We check for rotted framing, out-of-square openings, missing flashing, or termite damage before any new window goes in. Any of those issues changes the installation plan and we flag them before work starts, not after.

Then we set the unit level, plumb, and square, with the seat board and support structure carrying the cantilevered load the way the engineer specified. We use AAMA 812 low-expansion foam around the perimeter for air and water sealing, and we install per AAMA 2400/2410 practice for fenestration installation. After the unit is set and foamed, we water-test, trim out, and clean up. We also keep an eye on permitting requirements for HVHZ jurisdictions. Oakland Park enforces FBC-HVHZ, so the permit submittal needs the right NOA or Florida Product Approval number for your exact configuration. We help you get that right.

Coastal exposure is a real factor in Oakland Park even though we’re a few miles from the beach. Salt air, afternoon thunderstorms, and wind-driven rain all punish window installations. The sealant choices and flashing details that work in a dry climate will fail here. Our crews install for South Florida’s actual weather, not for a generic spec sheet.

Frequently Asked Questions - Bay & Bow Windows

Get a Quote - Bay & Bow Windows in Oakland Park

If you’re considering a bay or bow window for your Oakland Park home, the next step is a free on-site measurement. We’ll check the opening, confirm the wind zone and design pressure, and put together a written line-item quote with the NOA documentation you need for permit. Call (863) 264-3649 to schedule your free estimate.

Written by the team at TruePane Windows & Doors, serving Oakland Park, FL with hurricane-impact window and door installations.
